Multi-media control system to manage the operating room and territorial criticalities
Professional Show was awarded the contract relating for the supply including installation and starting of a new multi-media control system to manage the operating room and the room for the management of territorial criticalities as well as the monitoring of video security system at the headquarters of Brescia Firefighters.

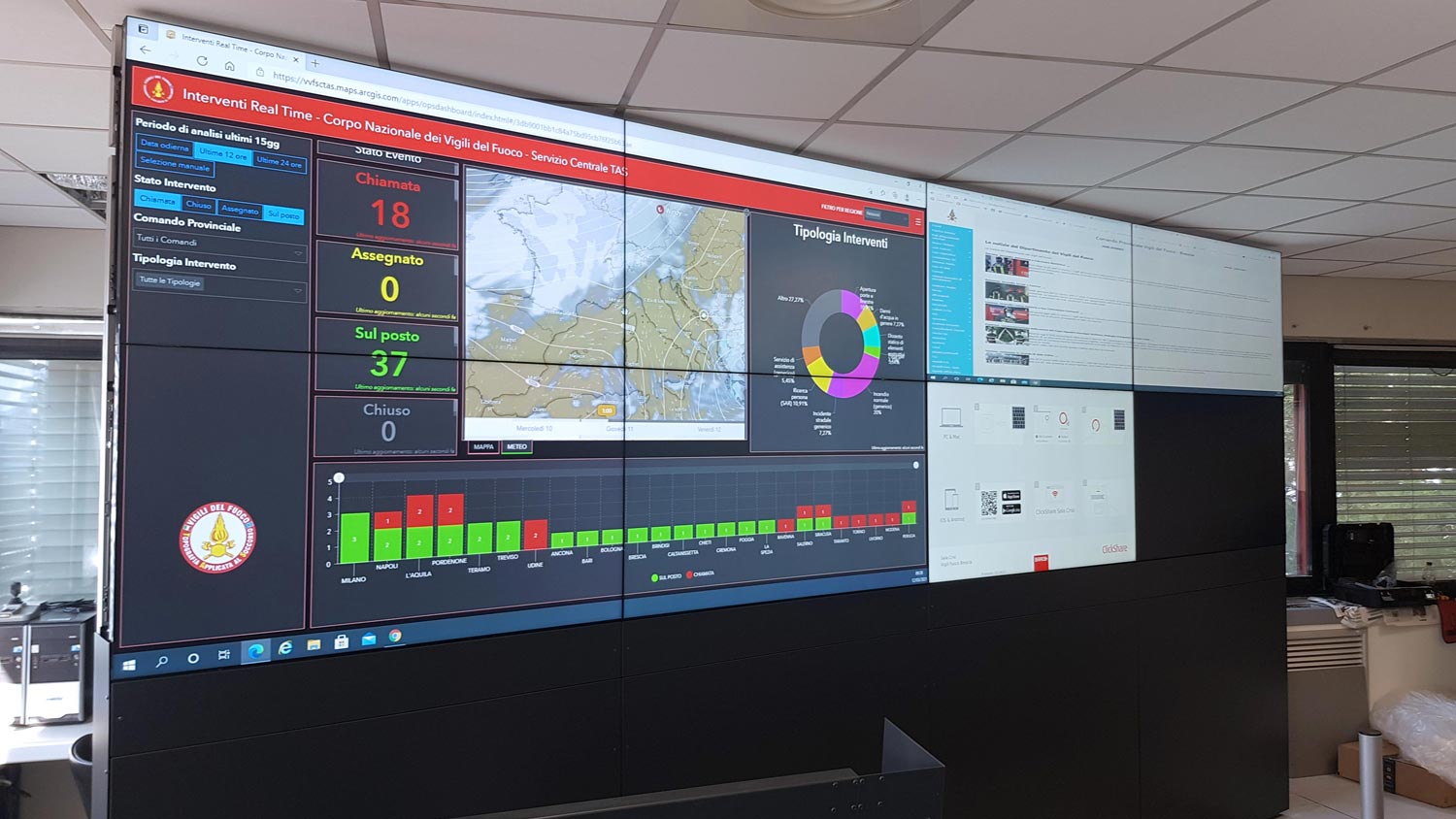

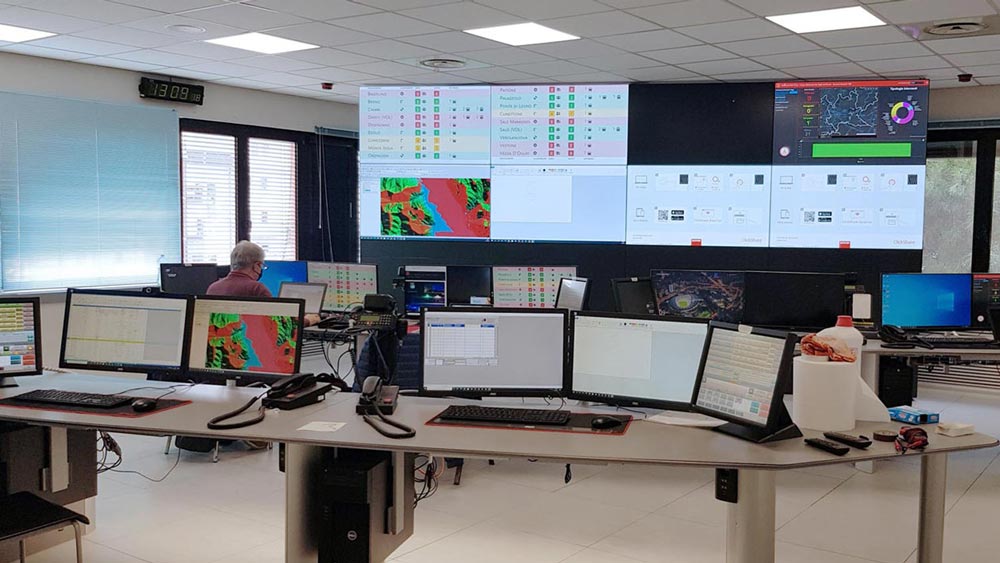

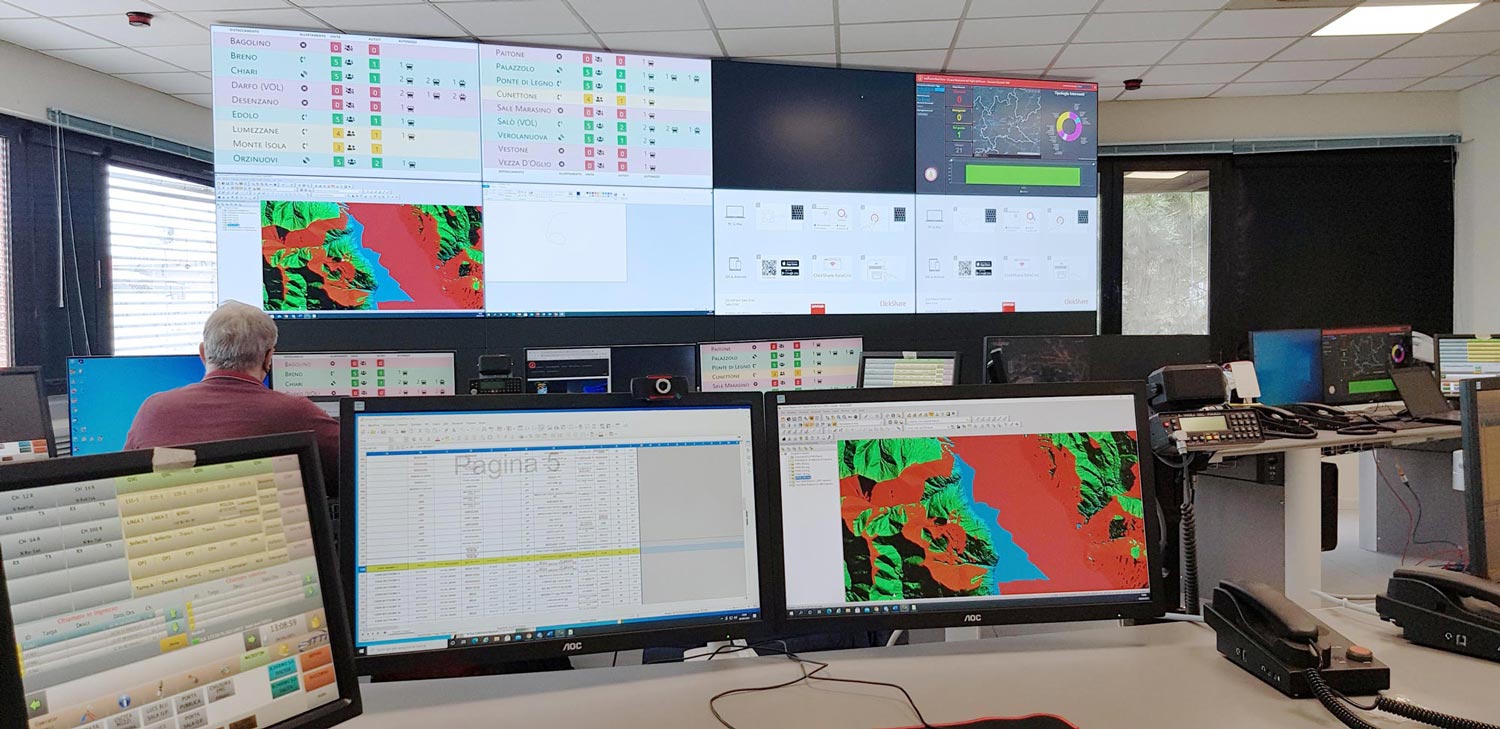

In the operating room was installed a large videowall consisting of 8 monitors Samsung 55’’ mod. UM55H-E in 4x2 model ultra-thin frame. This allows firefighters assigned to the Control Room to visualize in “Multiview” mode, shared and continuous, a large number of information and audio-video content from internet, software applications, external signals such as workstations used by room operators, fixed and mobile telephony equipment.
The "core" of the system is the Video Wall Controller composed of a Dexon DXN5200 matrix with HdBT I/O boards, configured with 32 total inputs and 16 outputs with HdBT and HDMI type.
Still in the operating room was configured a domotic audio diffusion system with QSC Audio loud speaker ceiling installation, to spread out, in a clear and intelligible way, the audio communications circulating in the Control Room.
A wifi tablet, equipped with a simplified graphical interface, manages in a domotic way both the audio system and the various functions of general control of the room such as switching on and off the videowall, the equipment connected to the audio-visual system, the selection of audio-video inputs.
Instead, in the Criticalities Room, two Samsung monitors of 75" mod. QM75R were installed, which, through the same central "core", visualize all video signals from the sources present in the operating room. The audio in this room comes from two sound-bars with Yamaha’s Airsurround Extreme technology.
In addition to audio signal circulating through the Core, inside the Criticalities Room was implemented the telephone communications management coming from digital and/or analog telephone channels.
The system provides for the local distribution of incoming and outgoing calls both for those using VOIP channels and the POTS line.
Sill in the Criticalities Room was installed a microphone system which is used for external telephone communication to and from fixed and mobile devices and a wireless presentation system for contributing and sharing audio visual information.
